flexible Modular Nitrogen Oxygen Generator Membrane System

Modular Nitrogen Oxygen Generator

Specification

Nitrogen capacity	100-2000Nm3/h
Nitrogen purity	95%~99.999%
Nitrogen pressure	0.5~0.8Mpa(boost for high pressure)
Nitrogen dew point	≤-40℃(Atmosphere pressure)
Control power supply	0.2kw 220v 50Hz

Work Principle:

The modular oxygen and nitrogen generation machines adopt the principle of PSA (pressure swing adsorption) technology. Pressure swing adsorption technology utilizes the different ad­sorption capabilities of adsorbents for raw gas under different pressures, while selectively ad- sorbing each component of the raw gas under a certain pressure. When pressurized, the adsorp- tion capacity of the adsorbent is enhanced, and alarge amount of impurity components in the raw gas are adsorbed. After reaching saturation, the pressure is reduced, and the adsorption capacity of the adsorbent is weakened during decompres­sion, A large amount of these impurities are pre- cipitated to regenerate the adsorbent. On this basis, using a combination of alternating opera- tions can achieve the goal of continuous separa- tion of feed gas.

Main Feature:

Easy to install and use with low cost; Patented filling technology ensures the com- pactness and compactness of molecular sieves, improving their service life;
High adsorption efficiency, improving product performance and reducing energy consumption;
Patent modular combination structure, which can be directly increased or decreased at will, reducing procurement costs;
RS485 signal communication, strong com­patibility and adaptability; Can achieve mobile app on/off and real-time parameter viewing;
Online communication adopts TCP+remote internet communication;
National standard valves, instruments, etc., standardized production, stable and reliable quali­ty.
Multiple units are used in parallel, easily achieving N+1 backup;

Product Tags:

Modular Nitrogen Oxygen Generator



flexible nitrogen generator



Modular Nitrogen Membrane System

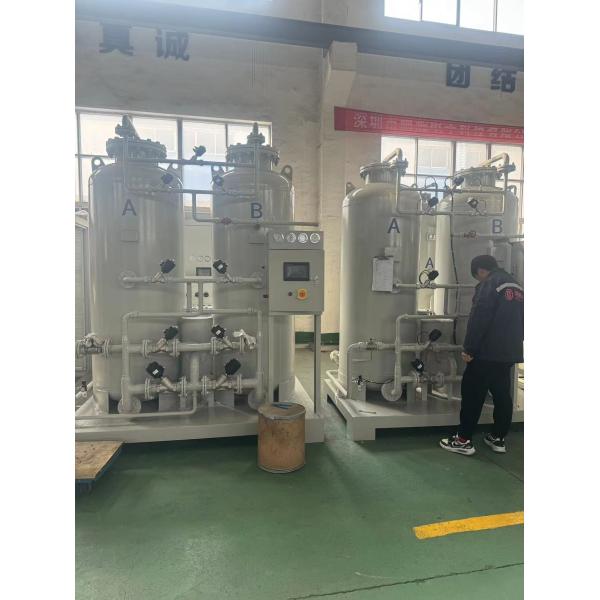

flexible Modular Nitrogen Oxygen Generator Membrane System Images
